WS 5 Series Bushings
WS 5 Series

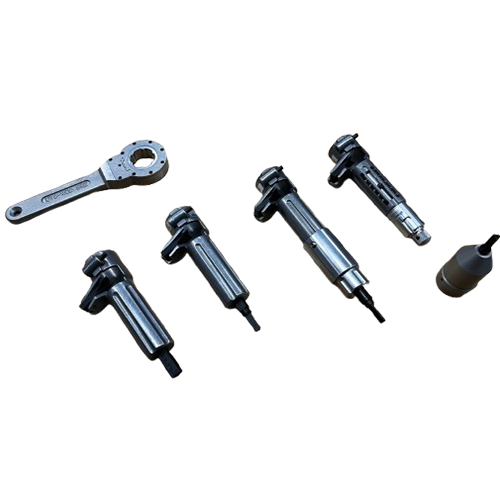

600V-35kV Cable End Stripper
Designed to strip XLPE, polyethylene & EPR insulations.
Part No: Refer to Chart
Share this product
Downloads
- Image: Photo 1: WS 5 600V-35kV Cable End Stripper
- Document: WS 5 Instruction Sheet
- Document: WS 5ADA Instruction Sheet
- Document: WS 5B Instruction Sheet
- Document: WS 5 Drill Adapter Instruction Sheet
- Catalog: Full Utility Catalog
Overview
- Precision tool engineered to strip XLPE, polyethylene & EPR insulations up to 400 mils thick from primary URD cable diameters of 0.26″ to 1.335″ (6.6 to 33.9 mm)
- Provides insulation only or simultaneous insulation & semi-con stripping operations
- Guarded cutting blade prevents injury & protects the blade
- Bushings accommodate various insulation & semi-con diameters
- Compatible with the with the SW 2 Series Ratchet Wrench for greater leverage
- Stop bar measurements are available in customary or metric units

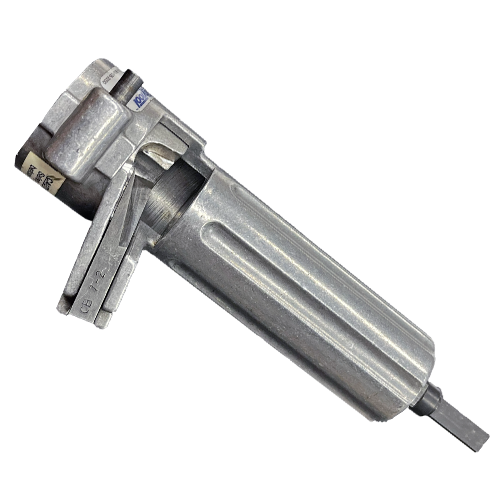

WS 5 DA Model:
- Equipped with a drill adapter stop bar
WS 5B Model:
- Provides an extended stripping length
WS 5A Model:
- Equipped with an adjustable strip stop mechanism & an adjustment window with a strip stop scale; also eliminates the need for a hex wrench
WS 5A DA Model:
- Equipped with a 3/8″ drill adapter, an adjustable strip stop mechanism & an adjustment window with a strip stop scale; also eliminates the need for a hex wrench
View Compatible Bushings
Compatibility
| Cable Compatibility | Primary Distribution Underground, Secondary Distribution |
|---|---|
| Cable Access | End |
| Min. Cable Outer Diameter | 0.26″ (6.6 mm) |
| Max. Cable Outer Diameter | 1.335″ (33.9 mm) |
| Insulation Materials | XLPE, EPR, PE |
| Min. Voltage | 600 V |
| Max. Voltage | 35 kV |
| Insulation Thickness | Up to 400 mils |
Specifications
| Replacement Blade Part # | R10324 |
|---|---|
| Replacement Stop Bar Kit #: | R10346 |
Comparison Chart
| MODEL | PART # | ADJUSTABLE STRIP STOP BAR | STRIP STOP SCALE | LENGTH | DIMENSIONS | STRIP LENGTH | DRIVE ATTACHMENTS |
|---|---|---|---|---|---|---|---|
| WS 5 | 10327
|
No | No | 6″ (152 mm) | 1 lb (454 g) | 0.75″ - 3.75″ (19.05 - 95.2 mm) | Manual Wrench |
| WS 5 DA | R10336 | Yes | No | 7″ (178 mm) | 1 lb (454 g) | 0.75″ - 3.75″ (19.05 - 95.2 mm) | Manual Wrench 3/8ʺ Drill |
| WS 5A | 37415
|
Yes | Yes | 8″ (203 mm) | 1 lb (454 g) | 0.625″ - 2.5″ (15.875 - 63.5 mm) | Manual Wrench |
| WS 5B | 37710 | Yes | No | 10″ (254 mm) | 1.7 lb (770 g) | 0.75″ - 5.75″ (19.05 - 146.05 mm) | Manual Wrench |
| WS 5A DA | 38750
|
Yes | Yes | 8″ (203 mm) | 1.2 lb (544 g) | 0.625″ - 2.5″ (15.875 - 63.5 mm) | Manual Wrench 3/8ʺ Drill |
